Digital Signal Processors Controllers DSP DSC 16Bit DSP with Flash TMS320LF2406APZA
High-Performance Static CMOS Technology− 25-ns Instruction Cycle Time (40 MHz)− 40-MIPS Performance− Low-Power 3.3-V Design Based on TMS320C2xx DSP CPU Core− Code-Compatible With F243/F241/C242− Instruction Set and Module CompatibleWith F240 Flash (LF) and ROM (LC) Device Options− LF240xA: LF2407A, LF2406A,LF2403A, LF2402A− LC240xA: LC2406A, LC2404A,LC2403A, LC2402A On-Chip Memory− Up to 32K Words x 16 Bits of FlashEEPROM (4 Sectors) or ROM− Programmable “Code-Security” Featurefor the On-Chip Flash/ROM− Up to 2.5K Words x 16 Bits ofData/Program RAM− 544 Words of Dual-Access RAM− Up to 2K Words of Single-Access RAM Boot ROM (LF240xA Devices)− SCI/SPI Bootloader Up to Two Event-Manager (EV) Modules(EVA and EVB), Each Includes:− Two 16-Bit General-Purpose Timers− Eight 16-Bit Pulse-Width Modulation(PWM) Channels Which Enable:− Three-Phase Inverter Control− Center- or Edge-Alignment of PWMChannels− Emergency PWM Channel ShutdownWith External PDPINTx Pin− Programmable Deadband (Deadtime)Prevents Shoot-Through Faults− Three Capture Units for Time-Stampingof External Events− Input Qualifier for Select Pins− On-Chip Position Encoder InterfaceCircuitry− Synchronized A-to-D Conversion− Designed for AC Induction, BLDC,Switched Reluctance, and Stepper MotorControl− Applicable for Multiple Motor and/orConverter Control External Memory Interface (LF2407A)− 192K Words x 16 Bits of Total Memory:64K Program, 64K Data, 64K I/O Watchdog (WD) Timer Module 10-Bit Analog-to-Digital Converter (ADC)− 8 or 16 Multiplexed Input Channels− 500-ns MIN Conversion Time− Selectable Twin 8-State SequencersTriggered by Two Event Managers Controller Area Network (CAN) 2.0B Module(LF2407A, 2406A, 2403A) Serial Communications Interface (SCI) 16-Bit Serial Peripheral Interface (SPI)(LF2407A, 2406A, LC2404A, 2403A) Phase-Locked-Loop (PLL)-Based ClockGeneration Up to 40 Individually Programmable,Multiplexed General-Purpose Input/Output(GPIO) Pins Up to Five External Interrupts (Power DriveProtection, Reset, Two Maskable Interrupts) Power Management:− Three Power-Down Modes− Ability to Power Down Each PeripheralIndependently Real-Time JTAG-Compliant Scan-BasedEmulation, IEEE Standard 1149.1† (JTAG) Development Tools Include:− Texas Instruments (TI) ANSI C Compiler,Assembler/Linker, and Code ComposerStudio Debugger− Evaluation Modules− Scan-Based Self-Emulation (XDS510)− Broad Third-Party Digital Motor ControlSupport Package Options− 144-Pin LQFP PGE (LF2407A)− 100-Pin LQFP PZ (2406A, LC2404A)− 64-Pin TQFP PAG (LF2403A, LC2403A,LC2402A)− 64-Pin QFP PG (2402A) Extended Temperature Options (A and S)− A: − 40°C to 85°C− S: − 40°C to 125°C
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
Q&A
1. How to obtain the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.
2. What is your delivery time?
This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.
3. What are your payment terms?
Factory price, 30% deposit, 70%T/T payment before shipment.
4. What is the mode of transportation?
It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
5. How do you help our business establish a long-term and good relationship?
We maintain good quality and competitive prices to ensure that our customers benefit.
2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
Product Tags:
|
|

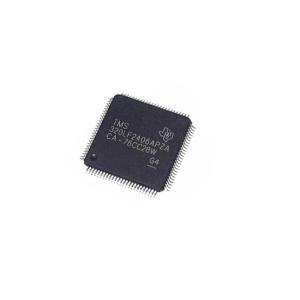

Flash Memory DSP IC Chip 16bit With Flash TMS320LF2406APZA Images
|
